Duo Series

Offered in Canada from 2007-2020, the Duo series was the entry-priced trailer for horses to 17hh! A solid horse trailer with saddle storage, with either an English or Western tack cupboard. Suited for horses up to 17h, the stalls were 31′ wide, with adjustable chest and rear stall bars to accommodate different sizes of horses or ponies.  Following a change in offerings to its overseas markets, the Duo is no longer offered in Canada. Still a model produced for the European market, parts and accessories remain available through Maple Lane Equestrian Trailers.  GVWR of 2400kg/5291lbs with 3.75% Loaded Tongue Weight (LTW) places 198lbs of max weight onto the tongue of the tow vehicle.

The Duo series comprised of 3 different models: Duo C- trailer with no tack storage; Duo R – trailer offering English tack cupboard; and Duo C Western – trailer offered with a Western tack cupboard and lower stall bar settings to better accommodate breeds typical in Western disciplines.

Specifications

What Makes the Duo models Unique?

The Duo models were built from an insulating 13-ply baltic birch laminate wall, covered in a UV protected colour. Floors were 1″plywood sandwiched between hard PVC coating, with a thick adhesive applied to the horse stall side to secure a rubber mat, which was sealed to the walls. This application prevented mold growing between the rubber mat and the floor, reducing the opportunity for rot. The roof was made of a thick polyester, formed to keep air flowing around the trailer, reducing any vacuum build-up or drag behind the trailer. The roof reflected the sun’s heat in the summer keeping the trailer cool inside relative to the summer temperatures, as it was not made of metal.  Tinted pop-out windows, an external release of all stall bars in models from 2011 onward, trailer tie rings, hay net hook in the roof and a variety of tack storage options, made the Duo series a complete trailer that did not empty the pocketbook!  NO longer offered as new models, accessories and parts remain available through the Dealership.

  • two 31″wide stalls
  • pop-out tinted windows
  • hay net ring in the roof for 1 or 2 hay nets
  • single black plastic fenders
  • MSS stall bar fastening with 3-angled rear positions/2 chest bar positions
  • lateral black kick plates

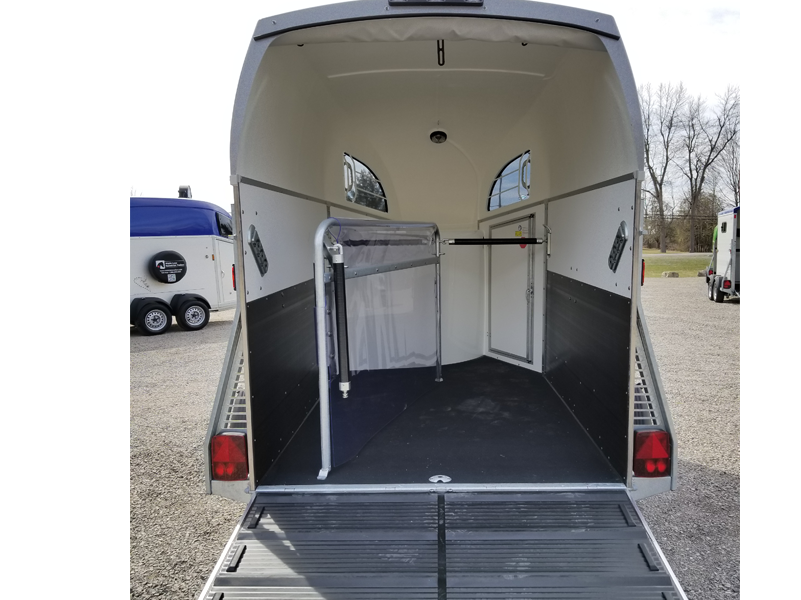

  • stall divider with clear PVC curtain
  • solid PVC rear storm curtain with integrated wind screen
  • stall and tack cupboard lights
  • trailer tie rings at the chest bar
  • rear ramp entry with Böckmann patented integrated rubber treads and side stops



Duo C

  • simple horse box without saddle storage

Duo R

  • Duo C Western- Western Saddle Cupboard


    Duo R – English Saddle Cupboard

    chest bar positions at heights suitable for warm bloods (2 settings)

  • English Saddle chest: 2 adjustable telescopic saddle racks

Duo C Western:

  • Western Rider Decor- standard (other decor can be ordered)
  • Western Saddlechest: 2 fixed position tubular formed racks for Western Saddles

Duo C Western 2011-2020
Type GVWR Total Height Total Width Total Length Internal Height Internal Width Internal Length Head Space Payload LTW
Duo C Western 5291 lbs 2400 kg 9’ 2730mm 7’ 2” 2200mm 14’9” 4500mm 7’6” 2300mm 5’ 5” 1650mm 10’ 2” 3100mm 49” 1225mm 3393 lbs 1539kg 211 lbs 96 kg
Duo R 2011-2020
Type GVWR Total Height Total Width Total Length Internal Height Internal Width Internal Length Head Space Payload LTW
Duo R 5291 lbs 2400 kg 9’ 2730mm 7’ 2” 2200mm 14’9” 4500mm 7’6” 2300mm 5’ 5” 1650mm 10’ 9” 3280mm 55” 1370mm 3327 lbs 1509 kg 211 lbs 96 kg

Compare Specs

  • 1″ thick full sheet of plywood, sandwiched between hard PVC coating. This keeps road heat away from horses feet and legs.
  • Rubber mat is fully glued to floor and sealed to wall edgeshorse loading

  • Locking North American 2″ couplers ensure you stay safely connected.
  • The superior overrun brakingsystem stops every time without ever pushing the tow vehicle.

Braking System

An assortment of Accessories are available for Duo models:

Locking rear flap on trailer

Polyester Lockable Flap over Rear Ramp

At Factory Additions included:

  • Colours for your Roof/Front Bow – Choose from 6 metallic + white at no cost or from 8 non-metallic colours for a surcharge
  • Coloured Polyester Fenders or Side Brace Covers in matching or contrasting colours to the Roof/Front Bow
  • Decors: Large or Small size, exclusive to Böckmann by Jan Künster in Anthracite/Black, multi-coloured or  Custom coloured
  • Interior Blue/White Light at rear of horse stall (above ramp opening)
  • Lockable Polyester Storm Flap above rear ramp
  • Rear Door-Ramp Combination (converts rear ramp entry to step-up entry)
  • Sliding windows in side roof (700x300mm)

Added Aftermarket:

  • Air Vent in Roof

    Lattice Head Divider

  • Böckmann Exclusive Alloy Rims
  • Coupler Cover: protects coupling for winter
  • External Tie Bar/Saddle Rack
  • Foldable foal grill – to block space above rear ramp
  • Full stall width bars – to create loose box for mare and foal
  • Head Divider: Lattice or Solid Stallion Divider
  • Mounting Step: foldable attached to rear ramp
  • Rubber mat for under front feet – protects floor from pawing
  • Stall bar padding for chest and rear stall bars
  • Sulky Holder on rear ramp

Chassis

Duo models have a galvanized steel chassis frame. The steel chassis secures the solid PVC-encased wood floor. Under the floor, there are longitudinal bars as well as cross-member pieces to provide the greatest strength.

Interior

The Duo had two 31” wide stalls + 7’6” internal height. The saddle chest sits in the nose of the trailer. Two tinted pop-out windows allow air to flow into the trailer. A hay ring centered in the roof and a bracket on top of the saddle chest offer different positions to tether hay bags or hay nets. Rings for trailer ties are found at the level of the chest bar.  This allows the horses to lower their heads for balance and clear their sinuses.

Duo R:
holds horses up to 17hh

Duo Western Duo R

Duo C – Western:
with stall bars that are lower for QH, Arabs, Paso’s and more

Trailer Features

Although features can be added to trailers, there are standard features on Böckmann Horse Trailers.

Böckmann Features
