Portax  K  WCF

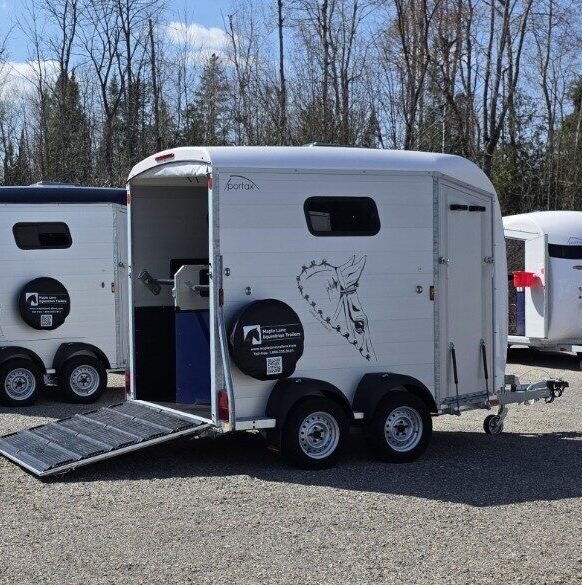

The Portax K  ( Front Walk-Off trailer)  brings versatility in a trailer to a whole new level. It is designed for the horse to 1.82m/18 hands. A hot-dipped galvanized steel chassis, with the World Class WCF suspension provides a larger trailer with the ultimate smooth ride.    GVWR of 2400kg/5291lbs.

Specifications

Trailers in Stock

$23,385.00 $22,700.00
ARRIVED! 2021 Portax K -  the perfect Horse trailer for young horses, trailering on your own or heading to shows. Dark Blue Polyester Roof and Front Bow, Anodized Aluminum panel walls, Anodized aluminum Floor, Galvanized steel frame and chassis, WCF Chassis, Rear Door-ramp Combo Black Small Competition Decor 2 horse Straight Load for Ponies - 18 hands; Internal height 7'7",  Total trailer length 15'6" LTW Max: 215 Lbs  Dual Axle
$23,550.00 $22,880.00
ARRIVED! This 2021 Portax K  with a  SLATE GREY  Polyester Roof and Front Bow, Small Jumper Decor Load easily by ramp or step-up. Arrive at your event, open the front ramp, lead line on your horse, release the chest bar and exit the front of the trailer. Anodized Aluminum panel walls, Anodized aluminum Floor, Galvanized steel frame and chassis, WCF Chassis, Rear Door-ramp Combo 2 horse - 18 hands, Straight Load, Internal Height 7'7", Total Trailer Length 15'6", Max  LTW: 215 Lbs Two 33" wide stalls
$23,665.00 $22,900.00
2020 Portax K - The perfect Horse trailer for young horses, trailering on your own or heading to shows. Royal Blue (Bright Blue) Polyester Roof and Front Bow, Anodized Aluminum panel walls, Anodized aluminum Floor, Galvanized steel frame and chassis, WCF Chassis, Rear Door-ramp Combo Black Small Competition Decor 2 horse Straight Load for Ponies - 18 hands; Internal height 7'7",  Total trailer length 15'6" LTW Max: 215 Lbs  Dual Axle
See All Portaxes

What Makes the Portax K WCF Unique?

Trailering alone is simple with the unique front walk-off ramp of the Portax K!  Sporting one full height person door on the left side and front exit ramp to the right, accessing your horse could not be easier!    Add the versatility of the swinging stall panels that hang from the central post- allowing you to easily tack a horse on the trailer, add or remove shipping bandages or groom your horse. The icing on the trailer cake is the ability to  simply switch from a rear ramp entry to a step-up with the pull of a pin! It is easy to see why this is the most popular Portax model sold in North America.

The entire trailer sits atop the elite WCF suspension, which keeps the road chatter where it belongs- at the level of the road, not bothering your horses legs. Use of suspension design from the automotive industry such as trailing arms, coil springs, rubber dampers and added gas shocks, sets Böckmann apart from other trailer brands.  Added features for your horses include a roof vent to draw air into the trailer plus two sliding lateral windows and a rear storm canvas allowing you to adjust air flow. Side wall & divider panels are padded as are the chest bars, with trailer tie rings mounted at the chest bar bracket for ease of clearing sinuses – creating a comfortable travel stall.  Hay net rings in the roof, a bright, wide airy horse stall with adjustable stall bar settings make the Portax E an easy ride for your horses!

Saddle storage is accessible from the left side of the trailer and offers a unique swivel-out saddle rack, for both English and western saddles. Hooks on the door, broom with telescopic handle, shovel, stool, crop holder and internal cupboard light complete the kit.

  • air vent in roof
  • galvanized steel chassis
  • sliding lateral window on each side of trailer
  • single black plastic fenders
  • your colour choice of roof & front bow
  • chest bars covered in black foam padding
  • 2 hay net rings in roof
  • trailer tie rings on side wall
  • simple stall bar fastening with 3-angled rear positions/2 chest bar positions
  • side wall padding
  • lateral black kick plates
  • anodized aluminum, honeycomb click wall panels
  • swivelling stall divider panels hanging from a central post
  • solid PVC rear storm curtain with integrated wind screen
  • rear ramp entry with Böckmann patented integrated rubber treads and side stops, converts into step-up

Saddle Rack Extended

Swinging the saddle rack outwards

The Portax K WCF

  • chest bar positions at heights suitable for warm bloods (2 settings)
  • 1 full height groom door on the left
  • 1 front walk-off ramp to the right
  • rear stall settings with 3 positions adjusting stall length
  • English/Western Saddle chest: Access from left side of trailer with 2 saddle racks, hooks, shovel, broom, stool, light
  • Swiveling central stall divider
  • Hay net rings in roof

Type GVWR Total Height Total Width Total Length Internal Height Internal Width Internal Length Head Space Payload LTW
Portax E/SKA/K 5291 lbs 2400 kg 9’2" 2815mm 7’ 7” 2350mm 15’5” 4725mm 7’6” 2300mm 5’ 9” 1750mm 11’ 5” 3495mm 55” 1370mm 2912 lbs 1321 kg 211 lbs 96 kg

Compare Specs

Rubber Mat

  • Aluminum floor: extruded click floor panels made from robust double web profiles. This keeps road heat away from horses feet and legs.
  • Rubber mat is fully glued to floor and sealed to wall edges

Flooring Horse's Feet Aluminum floor

  • Locking North American 2″ couplers ensure you stay safely connected.
  • The superior overrun brakingsystem stops every time without ever pushing the tow vehicle.

Braking System

An assortment of Accessories are available for the Portax K WCF models:

Portax K with optional Poly Side Brace Covers and Fenders in Black Metallic

Window in Groom Door

At Factory Additions:

  • Colours for your Roof/Front Bow – Choose from 6 metallic + white at no cost or from 8 non-metallic colours for a surcharge
  • Coloured Polyester Fenders or Side Brace Covers in matching or contrasting colours to the Roof/Front Bow
  • Decors: Large or Small size, exclusive to Böckmann by Jan Künster in Anthracite/Black, multi-coloured or  Custom coloured
  • Interior Blue/White Light at rear of horse stall (above ramp opening)
  • Lockable Aluminum Storm Flap above rear ramp
  • Sliding windows in side roof (700x300mm)

Added Aftermarket:

  • Böckmann Exclusive Alloy Rims
  • Coupler Cover: protects coupling for winter
  • External Tie Bar/Saddle Rack
  • Foldable foal grill – to block space above rear ramp
  • Full stall width bars – to create loose box for mare and foal

    Mounting Step Open

    External Tie Bar/Saddle Rack

  • Head Divider: Lattice or Solid Stallion Divider
  • Mounting Step: foldable attached to rear ramp
  • Stall bar padding for rear stall bars
  • Sulky Holder on rear ramp
  • Decors by Jan Künster





Chassis

The Portax E has a galvanized steel chassis frame. The steel chassis secures the aluminum floor panels. Under the floor, there are longitudinal bars as well as cross-member pieces to provide the greatest strength.

Interior

The Portax K WCF for has two 33” wide stalls + 7’7” internal height. The saddle chest sits in the wide nose of the trailer and opens to the Driver side.  Front walk off ramp to the right is easily accessed by each horse. For the Left side horse- push the front panel to the right wall, offering a wide space to cross the trailer and out the ramp.  Air Vent + two sliding lateral windows allow air to flow into the trailer. A hay ring in the roof, in front of each horse stall, plus a bracket on top of the saddle chest offer different positions to tether hay bags or hay nets. Rings for trailer ties are found at the level of the chest bar.  This allows the horses to lower their heads for balance and clear their sinuses.

Stall View from Front Ramp

Easy to Un-Load

Easy to Un-Load

Push Panel aside for more room to walk-off left side horse

Switch to rear step-up when needed

Trailer Features

Although features can be added to trailers, there are standard features on Böckmann Horse Trailers.

Böckmann Features
