Grand Master SR  (English/Western)

The most elite trailer in the Polyester series, the Grand Master is a striking trailer for the horse to 1.82m/18 hands. The longer, wider rounded hot-dipped galvanized steel chassis than the Big Master, with the World Class WCF suspension provides a larger trailer with the ultimate smooth ride.  The rounded chassis front in the SR model affords a full height storage cupboard on the left side of the trailer. Access to this cupboard is from both inside the trailer and outside the trailer on the Driver’s side. Everyone likes a little bling- with Alloy wheels and the black inset for the double windows – the Grand Master SR makes a statement as you arrive!  Add some colour or a decor to the many extras for both horse and rider, one can easily see why it is the top trailer for its weight class – GVWR of 2700kg/5952lbs.


What Makes the Grand Master SR Unique?

The Grand Master SR is identical to the Grand Master SKA – but offers a very different tack storage cupboard.

In general, the Grand Master SR combines the stall divider system of the Portax into the horse stall. Easy access to the horses by swinging a panel away allows you to tack a horse or to add/remove shipping boots. An air of elegance with its covered side braces and polyester fenders which can be in coordinating or contrasting colours to the roof and body- the Grand Master also has a Black Inset for the double windows.  Apply an exclusive decor by Jan Künster to tailor your trailer to you. The entire trailer sits atop the elite WCF suspension, which keeps the road chatter where it belongs- at the level of the road, not bothering your horses legs.  Added features for your horses include an additional rubber mat for wear protection against pawing or shoes with road studs and portable feed buckets that can be used in transit or at shows. A bright white, wide airy horse stall with adjustable stall bar settings and two tinted pop-out windows complete the inner stall look.

Saddle storage is accessible from both inside and outside of the trailer.
Standard is the English Version:  2 Telescopic adjustable saddle racks for English Saddles, 4 shelves, many hooks, broom with telescopic handle, shovel, mirrors and net on each door, 2 sets of crop/whip holders and 2 sizes of stools. A third English rack is possible to add for Eventers as an Accessory.

For the Western competitive or trail rider that likes to travel in style – the Grand Master SR can be fitted with 2 Western saddle racks instead of the English version.

  • rounded front of galvanized steel chassis
  • 2 sliding tinted windows  in each side wall
  • single poly fenders & side brace covers – coloured
  • side brace covers – coloured
  • your colour choice of body & roof
  • chest bars covered in black foam padding
  • simple stall bar fastening with 3-angled rear positions/2 chest bar positions
  • side wall padding
  • lateral black kick plates
  • robust polyester walls
  • central post stall divider with swinging front and rear panels
  • solid black PVC rear storm curtain with integrated wind screens
  • rear ramp entry with Böckmann patented integrated rubber treads and side stops

Saddle Cupboard via External Access

Full Height Cupboard-Stall Access

The Grand Master SR

  • additional mat for wear protection
  • chest bar positions at heights suitable for warm bloods (2 settings)
  • 2 sliding tinted windows  in each side wall
  • rear stall settings with 3 positions adjusting stall length
  • Full Height Cupboard – standard –
    English Saddle chest: 2 adjustable telescopic saddle racks, 4 shelves, hooks,  2 whip/crop holders, shovel, broom, mirror/ net on each door
  • Western Saddle Chest: 2 fixed western saddle racks, + all items above
  • 2 stools: small and large
  • Swiveling central stall divider
  • Smooth white interiors
  • portable feed buckets x 2

Type GVWR Total Height Total Width Total Length Internal Height Internal Width Internal Length Head Space Payload LTW
Grand Master SKA/SR 5952 lbs 2700 kg 9’ 2" 2820mm 7’ 6” 2310mm 17’ 3” 5260mm 7’6” 2300mm 5’ 7” 1750mm 12’ 8” 3900mm 65” 1651mm 3397 lbs 1541 kg 238 lbs 108 kg

Compare Specs

Rubber Mat

  • Aluminum floor: extruded click floor panels made from robust double web profiles. This keeps road heat away from horses feet and legs.
  • Rubber mat is fully glued to floor and sealed to wall edges

Flooring Horse's Feet Aluminum floor

  • Locking North American 2″ couplers ensure you stay safely connected.
  • The superior overrun brakingsystem stops every time without ever pushing the tow vehicle.

Braking System

Night Travel with Calming Blue Light

An assortment of Accessories are available for the Grand Master SR models:

At Factory Additions:

  • Colours for your Roof/Body – Choose from 6 metallic + white at no cost or from 8 non-metallic colours for a surcharge
  • Colours for your  Polyester Fenders or Side Brace Covers in matching or contrasting colours to the Roof/Body
  • Decors: Large or Small size, exclusive to Böckmann by Jan Künster in Anthracite/Black, multi-coloured or  Custom coloured
  • Interior Blue/White Light at rear of horse stall (above ramp opening)
  • Lockable Polyester Storm Flap above rear ramp
  • Rear Door-Ramp Combination (converts rear ramp entry to step-up entry)

Added Aftermarket:

  • Coupler Cover: protects coupling for winter

    Mounting Step Open

  • External Tie Bar/Saddle Rack
  • Fold-able foal grill – to block space above rear ramp
  • Full stall width bars – to create loose box for mare and foal
  • Head Divider: Lattice or Solid Stallion Divider
  • Mounting Step: foldable attached to rear ramp
  • Stall bar padding for rear stall bars
  • Sulky Holder on rear ramp
  • Decors by Jan Künster




The Grand Master has a rounded galvanized steel chassis frame. The steel chassis secures the aluminum floor panels. Under the floor, there are longitudinal bars as well as cross-member pieces to provide the greatest strength.


The Grand Master SR for has two 33” wide stalls + 7’6” internal height. The saddle chest sits in the wide nose of the trailer. Two tinted sliding windows on each side wall of the trailer allow air to flow into the trailer. Roof Vent for added air flow and temperature control. A hay ring centered in the roof and a bracket on top of the saddle chest offer different positions to tether hay bags or hay nets. A full height storage cupboard makes packing for a show extra convenient. Rings for trailer ties are found at the level of the chest bar. This allows the horses to lower their heads for balance and clear their sinuses. Two portable feed buckets and additional rubber mat under the front feet make a cozy space for your horses.

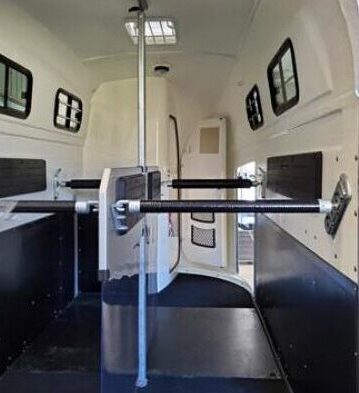

Stall View of Grand Master SR

Grand Master WCF Stall View

Front of Stall View

Lots of space ahead of chest bar!

Easy to Load!

Trailer Features

Although features can be added to trailers, there are standard features on Böckmann Horse Trailers.

Böckmann Features
