Description

2026 Portax L K  –   “L” for Longer!   “K” for Front walk-off!
ARRIVING Late NOV!

Silver Metallic Roof/Bow and Small Horse Head Decor by Jan Künster.

Quick Facts:
7’8″ Internal Height, Total Trailer Length: 17’6″,  Straight Load 2 horse – 18 hands, Two 33″ wide stalls,
Dual Axle;  LTW max: 238 Lbs,  Xtra 63 cm of Floor Space for hay – changing – or working with your horses!

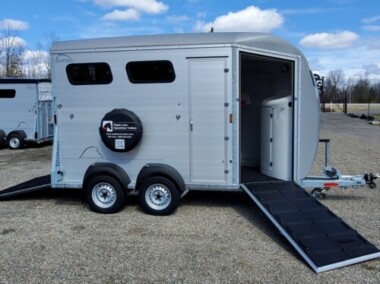

Rear ramp entry & step-up standard in one trailer + front walk-off ramp!
Tack locker, accessible from Driver-side Access door.

Beautiful extra long Portax, the Portax LK offers an additional 2 ‘ of total trailer length. This provides extra room to offload large horses from the front of the trailer.  The extra floor space means

• more room for extra hay bales,
• to change between classes,
• to place a trunk
• to sit out of the rain with your horses at an outside event.

Take a Trailer Tour!  NEW VIDEO upon Trailer Arrival. Model will be identical to unit seen in video.

In addition to the extra floor space, the Portax LK offers the owner even more features over its regular K cousin,

• 2 full height access doors into the horse stall,
• double lateral sliding side wall windows,
• portable feed/water buckets that mount on the inner groom door panel,
• additional rubber mat for wear protection against pawing or road studs,

Plus all the standard safety features for horses for which Böckmann is renowned world-wide:

• MSS External Stall Bar release
• WCF Automotive  Suspension – keeps road chatter at the road for smooth ride
• Lower trailer tie rings makes balancing in the trailer easier for the horses
• Tinted safety windows to reduce glare
• White/Blue stall lighting for loading and calming travel
• Stall bar settings so the “seat belts” fit the horse
• Longer ramps with lower incline for ease of entry
• Rear Door-Ramp combo– convert from ramp entry to step-up with the pull of a pin

Built on hot-dipped galvanized steel chassis. With anodized aluminum extruded panels – structural corrosion is a thing of the past!
Böckmann horse trailers are built for the cold and the heat

German Engineering at its best!

A uniquely designed polyester roof changes the air flow.  This shape reduces drag, minimizing fuel consumption and the chance of sway. In Portax models, a built in “hill” for the air to flow over, pulls the air into the trailer through the roof vent. The air flows out the back through the wind screen or fully opened storm canvas, keeping the trailer temperate.

Böckmann is a better balanced trailer due to its axle placement centered under the load.  With less than 4% of towed weight leaning on the trailer, a Böckmann horse trailer is the perfect fit behind mid-size SUVs.

Smooth ride for your precious cargo! KNOTT ‘s  self-adjusting overrun braking system (mechanical) provides consistent, even braking.  KNOTT’s elite 2″ coupler with integrated coupler lock is able to swivel around the ball.  This unique feature provides security both in transit and when your trailer is parked.

Böckmann’s  WCF Suspension is an automotive suspension- unique to the horse trailer world. As seen under cars and trucks, the suspension arms move independently. The addition of rubber dampers and the WCF shocks keep the road chatter at the road. Your horses arrive rested at their destinations.

Wheels are mounted to hug the road – same as your tow vehicle – reducing the chance of sway! Wheel chocks included with every Böckmann trailer for long term parking.

Standard Features

🗸  Internal Height 7’8″,
🗸  Two 33″ wide stalls – ample for Medium and Warm Blood Horses
🗸   63cm extra room ahead of the chest bars over regular SKA model
🗸  Added rubber mat set under front feet – protects against pawing and road studs
🗸  Aluminum  floor (20 Yr Warranty) covered by rubber mat – glued and sealed around the edges
🗸  Anodized Aluminum wall panels- prevents corrosion; double wall for insulation
🗸  Additional stall bar padding on chest bars & padded side walls
🗸  Adjustable stall length- 3 positions
🗸  Adjustable chest bar height- 2 positions

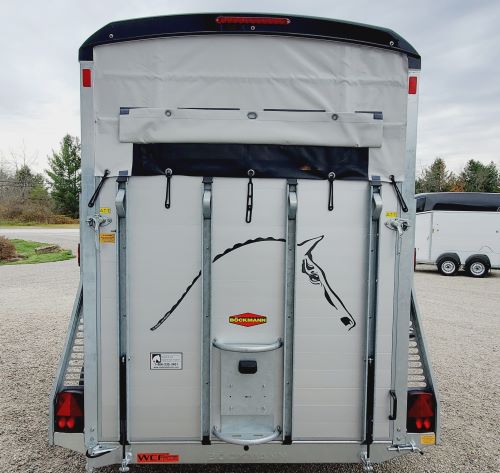

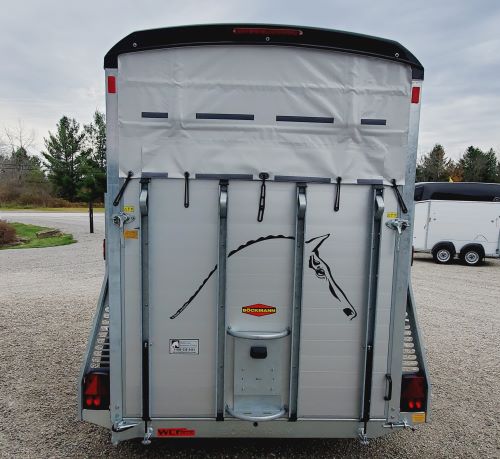

🗸  Automatic canvas storm lift with integrated wind screen, above rear ramp
🗸  Automotive WCF Suspension (trailing arms, added shocks + rubber dampers) = the smoothest ride
🗸  Central post with swinging stall dividers, for easy loading
🗸  Door-Ramp Combo: switch from rear ramp load to Step-up, with the pull of a pin
🗸  Double Sliding lateral windows with safety grills
🗸  Entrance Doors on both sides of the trailer
🗸  Galvanized Steel Chassis
🗸  Hay net tethers
🗸  Integrated locking coupler
🗸  Magnetic stall divider holder can be found in both of the 33″ wide stalls – makes loading easier, keeping the stall panel to one side
🗸  Patented MSS System for External Stall Bar Release
🗸  Portable feed buckets
🗸  Ramp with Böckmann’s safety treaded rubber mat on 5′ rear ramp
🗸  Removable stall divider system – Purchase pair of Full width bars to make a box stall
🗸  Retractable Jockey wheel
🗸  Stall light – white for loading, blue for night travel- and for anxious horses day or night
🗸  Spare Wheel + Cover
🗸  Trailer Tie rings
🗸  Wheel chocks stored under the chassis

Lockable Tack Locker with access from Driver-side of trailer. Includes 2 wide Saddle racks, that swing out to the entrance door for easy access + Kit ( broom & shovel), light, stool, crop holder and multiple hooks.

Easily towed by SUV’s and Light trucks with 4400lbs Tow Capacity or more!
